Semi-Auto Box Packaging Machine
Relevant Instructions
- Fast gluing and sealing.
- Compact Size.
- Suitable for various size of box.
-
Two Side
Seal -
SUS
#304 -
30
box／min -
Made in
Taiwan
- TD-B015 Box Auto Filling and Sealing Machine is to carry out all types of carton sealing adhesive.
- This machine uses integrated technology with stable performance, simple operation and automatization.

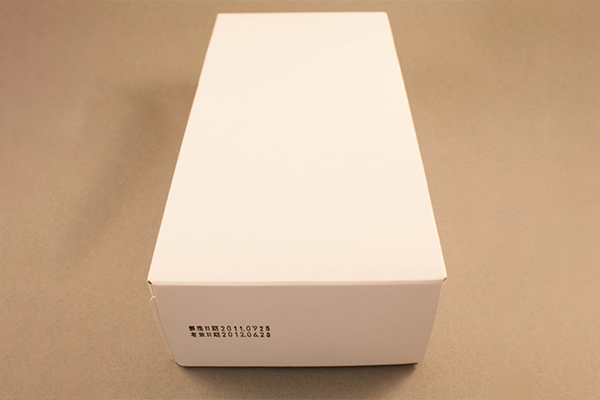

- Box sealing and production batch & expiry date coding in one run.
- Also equipped are malfunction warnings for fail safe packaging processes.
- It adopts speed controlling and automatic controlling system integrating photocells and pneumatic devices.
- TD-B015 is user-friendliness, featuring fast speed and cost efficiency.
| Heating Method | Hot Glue Melting |
|---|---|
| Box Size | L150~280*W80~160*H30~120 mm |
| Speed | 10~30 box per minute |
| Air Consumption | 0.6MPa, 800NL/min, 3HP |
| Machine Dimension | 1600*970*1900 mm |
| Weight | 320 KG |
| Power | 220V, 3-Phase, 3KW |
- TD-B015 Box Auto Filling and Sealing Machine is to carry out all types of carton sealing adhesive.
- This machine uses integrated technology with stable performance, simple operation and automatization.
- Box sealing and production batch & expiry date coding in one run.
- Also equipped are malfunction warnings for fail safe packaging processes.
- It adopts speed controlling and automatic controlling system integrating photocells and pneumatic devices.
- TD-B015 is user-friendliness, featuring fast speed and cost efficiency.
